Measuring Retail Touchpoints: From the Street to the Till

Retail touchpoint measurement works best as a funnel, not as a collection of disconnected dashboards. Start outside the store with passing opportunity, measure who enters, measure which areas receive exposure, record queue conditions, then compare eligible visits with qualifying purchases. Each stage needs its own event definition, tool and denominator.

V-Count brings these stages into one measurement stack: storefront and entrance counting, in-store zone analytics, queue measurement and BoostBI reporting with compatible sales data. The goal is not to identify individual shoppers. The goal is to make each stage of the physical retail journey measurable enough to find where opportunity is being gained or lost.

1. Map the Retail Journey Into Five Measurable Stages

A physical retail journey can contain dozens of interactions, but the core measurement plan becomes much easier when it starts with five stage definitions. These stages create a consistent backbone across marketing, customer experience, operations and store performance reporting.

Stage 1: Passersby measure the opportunity outside the door

Passing traffic is the denominator for storefront capture. It tells you how much potential traffic moved through a defined frontage area, not how many people intended to shop. The measurement boundary matters: a counter across your own frontage answers a different question from a mall-wide total or a broader location-intelligence estimate.

For detailed street-to-door measurement rules, use V-Count’s Storefront Counting & Capture Rate guide. This article begins with that stage and carries the measurement plan through the rest of the store.

Stage 2: Entries measure the traffic opportunity inside the store

Entry counts should represent eligible customer visits as consistently as possible. That means documenting which doors are included, how entrances and exits are handled, how closed hours are treated and whether staff movements are excluded. V-Count’s Nano AI can provide bidirectional entrance counts and supports staff-exclusion workflows so visitor traffic is not unnecessarily inflated by employee movement.

Stage 3: Zone exposure measures what shoppers had a chance to see

Once a visitor is inside, a store-wide traffic number is too broad for merchandising questions. Define specific zones around departments, promotional tables, displays, fitting-room approaches or service areas. Nano Prime can add heatmaps, zone visits, flow and dwell measures so teams can ask whether shoppers reached the part of the store where an intervention was intended to work.

Stage 4: Queue events measure service friction

A queue metric should describe an observable queue event, not assume every shopper near a till is waiting. Define the queue area, entry rule and service boundary. Depending on the configuration, useful measures may include queue entries, queue length, waiting time or service time. Queue data becomes much more useful when compared with store traffic and transaction demand by the same hour.

Stage 5: Transactions measure commercial completion

POS data records completed purchase events, but the business rule still matters. Decide how returns, cancellations, split payments, collection-only visits and non-selling transactions are treated. For a basic store conversion KPI, compare qualifying purchases with eligible visits in the same period. For more detailed integration rules, V-Count’s retail conversion guide provides the next layer.

2. Use the Right Denominator at Every Touchpoint

The easiest way to corrupt a retail dashboard is to reuse one denominator everywhere. A store can have excellent storefront capture but weak purchase conversion, or low zone reach but strong conversion among the shoppers who do reach that department. Those are different problems and need different calculations.

Other denominators can be valid when they match the business question. For example, a service team may measure average wait time per queue event, a merchandiser may measure stop rate per zone passage, and finance may compare revenue per visitor. The denominator should be written into the metric definition so the number remains comparable after the dashboard owner changes.

3. Match the Measurement Tool to the Question

A good retail touchpoint plan is tool-neutral at the definition stage and specific at the deployment stage. First decide what event must be measured. Then select the hardware, configuration and data source capable of measuring it reliably in that environment.

Where V-Count fits into the stack

4. Design the Sensor Layout Around Decisions, Not Devices

Before installation, mark the store plan with the events you need rather than placing sensors wherever mounting is easiest. A simple layout might include a storefront measurement area, one entrance line, one or more merchandising zones and a checkout queue. Larger stores can repeat the same logic by department.

For each measurement point, record four items before go-live: the physical boundary, the event rule, the expected denominator and the owner who will validate the data. This prevents a later analytics team from inheriting a number called “engagement” without knowing whether it means a passage, a stop or a dwell threshold.

5. Build a Stage-by-Stage Event Dictionary

An event dictionary is the simplest way to make retail analytics reproducible. It gives IT, store operations, marketing and BI teams the same definitions before anyone starts comparing locations or campaign periods.

Add governance fields, not just metrics

For multi-store reporting, include a store ID, local timezone, source system, data interval and definition version. When a layout changes, a sensor moves or a POS rule changes, record the effective date. Otherwise a dashboard may show a sudden “performance change” that is really a measurement change.

6. Anonymous Aggregates Do Not Prove Individual Customer Attribution

This distinction is essential. A retailer can measure 1,000 passersby, 220 store entries, 132 visits to a campaign zone and 44 purchases. Those figures describe stage totals. They do not, by themselves, prove that the same 44 people who purchased were among the 132 people counted in the zone.

This limitation does not weaken retail analytics. It makes the measurement more credible. Aggregate stage data is often exactly what operations teams need: where the funnel changed, whether the change repeated, and which part of the store deserves a controlled test next.

7. Worked Example: Measuring a Store Campaign From Street to Till

Assume a retailer changes the storefront message and moves the featured collection to a measured zone inside the store. The goal is to understand whether the campaign improved the journey, not merely whether sales were higher.

Use matched trading hours and comparable days. Keep the event definitions unchanged. The figures below are illustrative and designed to show the measurement logic.

Read the example as a sequence, not a single success number

Sales volume improved, but the stage data tells a richer story. Some of the gain came from more passing traffic. Capture also improved, so the storefront converted that opportunity more effectively. A larger share of visitors reached the featured zone, and purchase conversion improved. At the same time, queue incidence rose, which could justify a staffing or service check during the busiest hours.

The correct conclusion is not “the campaign caused every additional sale.” The correct next step is to repeat or extend the test, keep the measurement rules stable and control obvious factors such as promotions, opening hours, stock availability, major local events and staffing.

8. Turn Touchpoint Data Into a Weekly Operating Routine

The measurement plan only creates value when teams know what to do with a change. Build a short review that moves from data quality to funnel diagnosis to action.

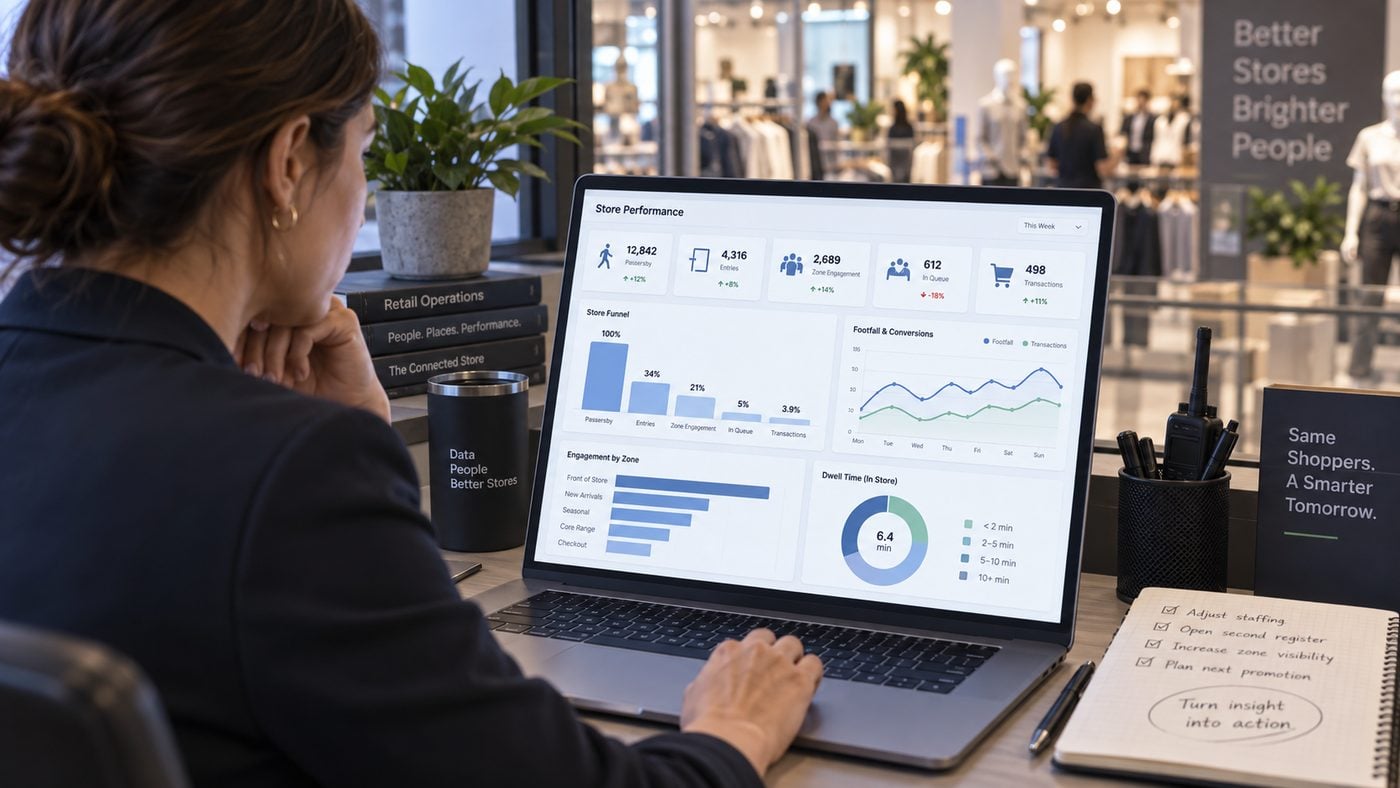

Use BoostBI as the shared reporting layer

When the underlying measurements are defined consistently, BoostBI can give different teams the same operating picture: visitor counts, location performance, heatmaps and zones, conversion metrics and other configured KPIs. That makes it easier for marketing, regional operations and store managers to discuss the same funnel instead of reconciling separate spreadsheets first.

If you already have POS or reporting systems, treat integration as a data-quality project rather than a simple “connected/not connected” checkbox. Confirm store IDs, timestamps, time zones, sales rules and update cadence. Use verified native integrations where they exist and scope custom API work separately.

9. A Practical Retail Touchpoint Measurement Checklist

1. Write the business question first. Example: “Did the new window increase entry capture?” or “Did the new fixture increase zone reach?”
2. Name the numerator and denominator. Put the formula in the dashboard definition.
3. Draw the physical measurement boundary. Frontage, entrance, zone or queue should be visible on a floor plan.
4. Choose the source. Sensor, POS, staffing or campaign data should have a clear owner.
5. Align time. Use the same trading window, timezone and interval before joining stage metrics.
6. Record exclusions. Staff, closed hours, returns, cancellations and other special cases should be documented.
7. Validate before scaling. Review the count or event logic at representative stores before comparing an entire estate.
8. Separate correlation from attribution. Aggregate stages show where performance moved. They do not automatically identify or attribute individual journeys.
9. Assign an action threshold. Decide what change is meaningful enough to investigate, test or escalate.
10. Review the definitions periodically. Store layouts, campaigns and systems change; event dictionaries should change deliberately, not silently.

Frequently Asked Questions About Retail Touchpoint Measurement

Measure the Whole Funnel Without Losing the Meaning of Each Stage

Retail touchpoints become useful when every number answers a specific question. Passerby counts describe outside opportunity. Entries describe store traffic. Zone analytics describe exposure and engagement. Queue events describe service conditions. POS describes completed purchases. The power comes from connecting those stages carefully, not from pretending they are one undifferentiated customer-tracking metric.

For retailers that want one measurement plan across the storefront, entrance, floor and checkout, V-Count can map the required events to Nano AI, Nano Prime and BoostBI, then scope the reporting and integration rules around your store format.
